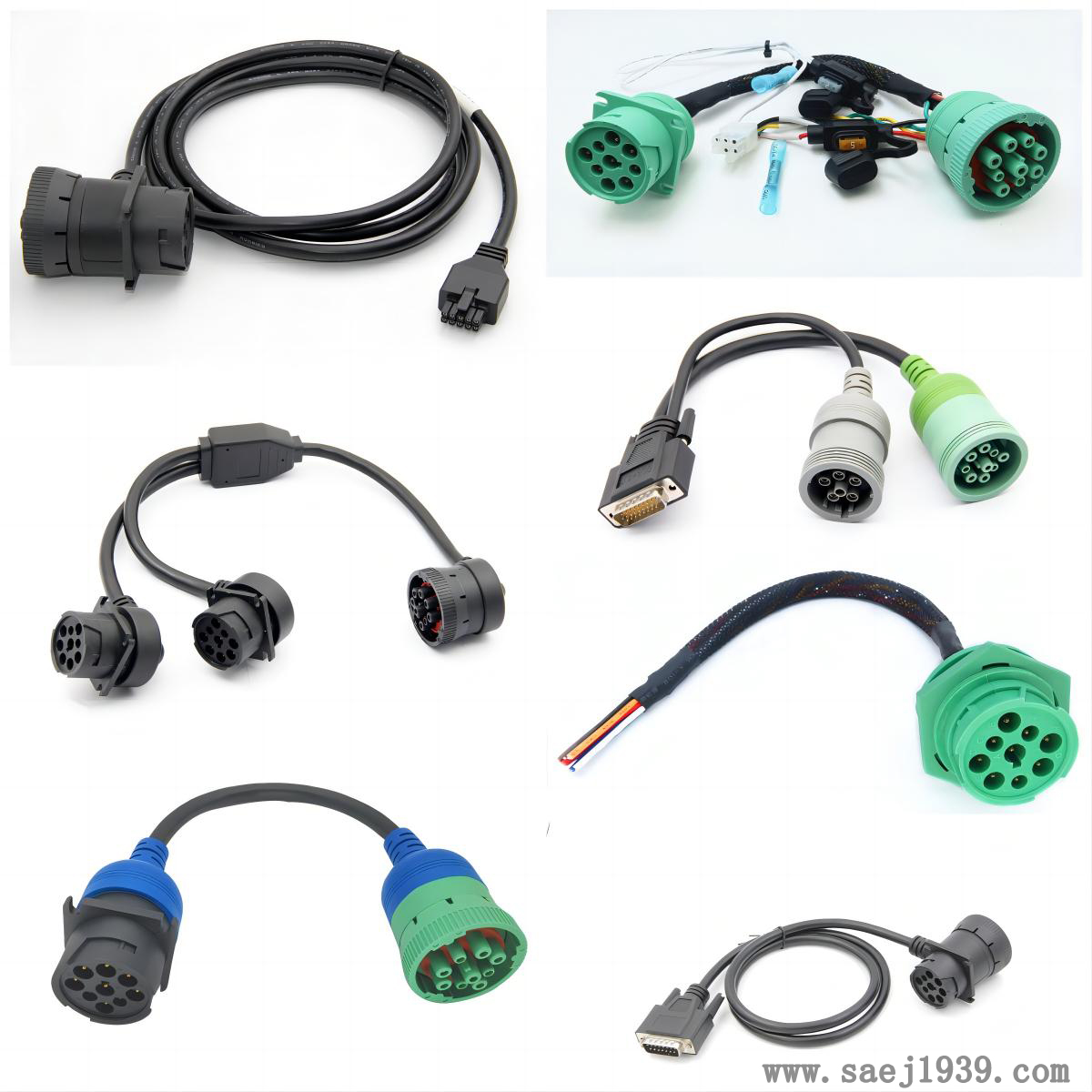

Application and selection points of J1939 male to female cable

Application and selection points of J1939 male to female cable

application area

Automotive electronics: Used in heavy-duty trucks, buses, construction machinery and other vehicles to connect various electronic control units such as engine control units (ECU), transmission control units, anti lock braking systems (ABS), electronic stability programs (ESP), etc., to achieve communication and collaborative work between them, in order to optimize vehicle performance and safety.

Industrial automation: In some industrial automation equipment, such as cranes, forklifts, automated production lines, etc., J1939 male to female cables can be used to connect various controllers, sensors, and actuators, achieving remote monitoring and automation control between devices.

Key selection points

Pin definition and arrangement: Ensure that the pin definition and arrangement of the cable match the connected device to ensure correct signal transmission. Different J1939 devices may have different pin definitions and arrangements, so the selection needs to be based on the actual device.

Cable length: Select the appropriate length of cable based on the actual usage scenario and the distance between devices. Long cables may cause signal attenuation, while short cables cannot meet connection requirements.

Current carrying capacity: If a cable needs to transmit power signals, its current carrying capacity needs to be considered to ensure that it can meet the power supply requirements of the equipment and avoid overheating or even damage to the cable due to excessive current.

Protection level: Select cables with corresponding protection levels according to different usage environments. For example, in humid, dusty, or corrosive environments, waterproof, dustproof, or corrosion-resistant cables with higher protection levels should be selected.
