Specification |
|

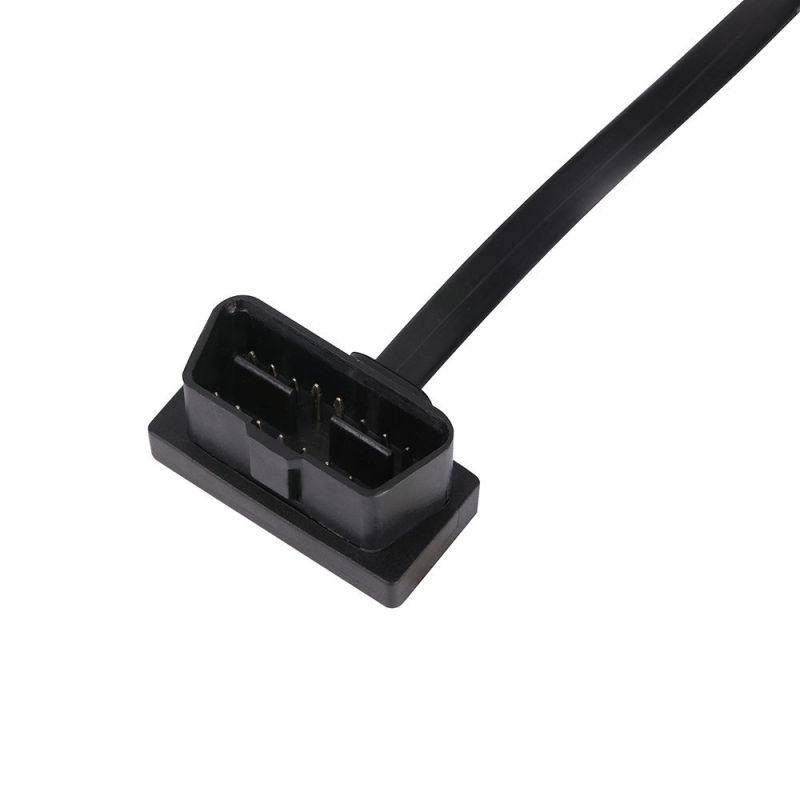

OBD2 male plug | standard,12V/24V |
Pins of OBD2 male plug | Copper,nickel-plated or gold-plated |
Overmold of OBD2 male plug | slim design, right angle 90-degree |
OBD2 female connector | standard |
Cable shape | flat,thin |
Wire | 26AWG, pure copper |
Material of overmolded part | PVC |
Pin assignment or pin out | customized |
Cable length | customized |
Pins or terminals | copper, nickel-plated or gold-plated |
Contact Resistance | 3 ohm max. |
Insulation Resistance | 5M ohm min. |
Working Temperature | −25℃ ~ +85℃ |
Testing | 100% open, short and mis-wire testing |
Testing Voltage | DC300V 5M ohm/10ms |
Warranty | 1 year |
