Specification |

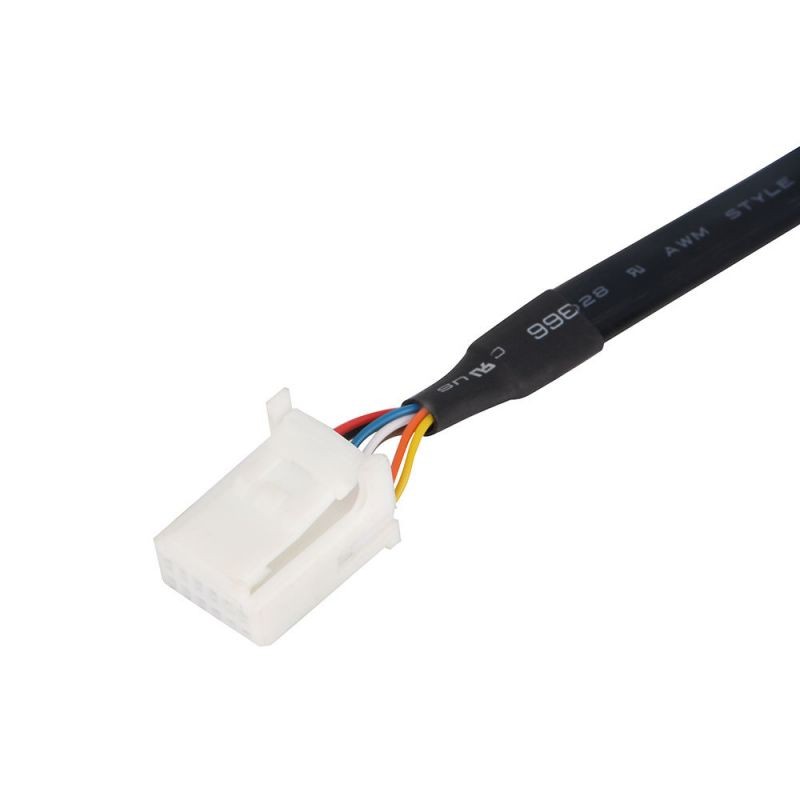

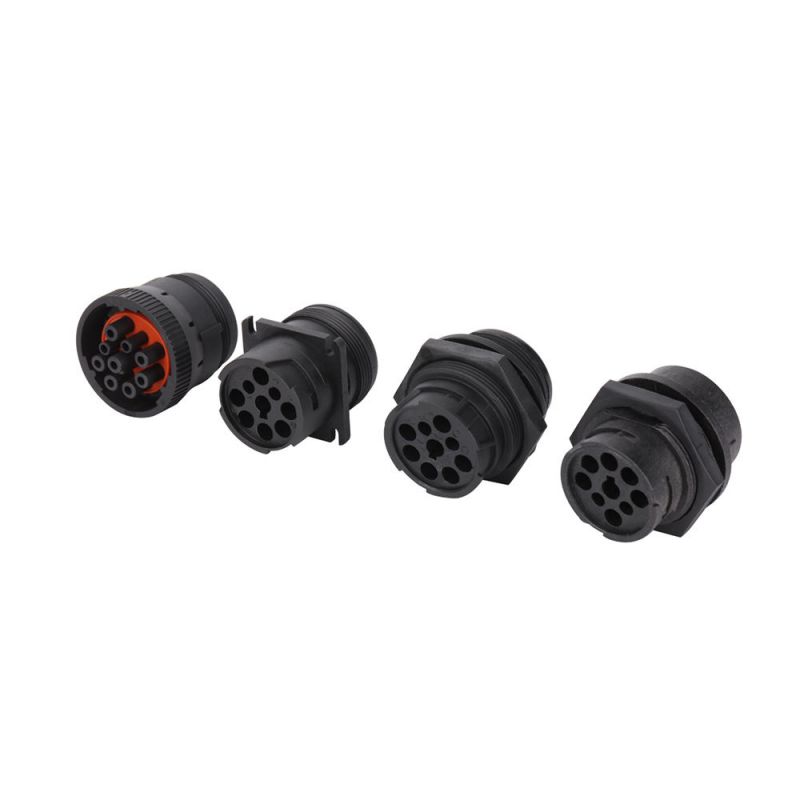

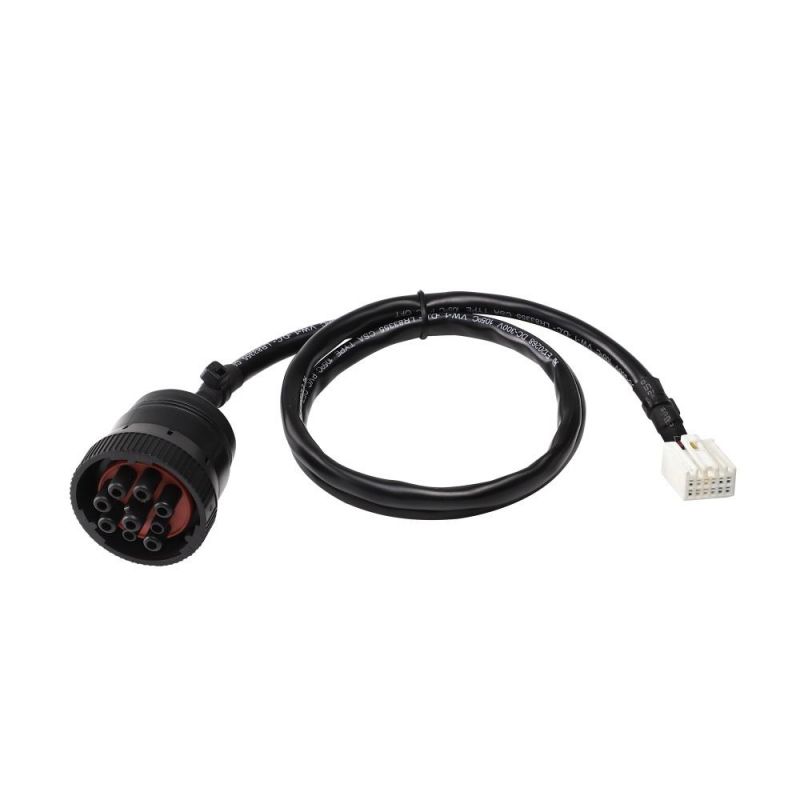

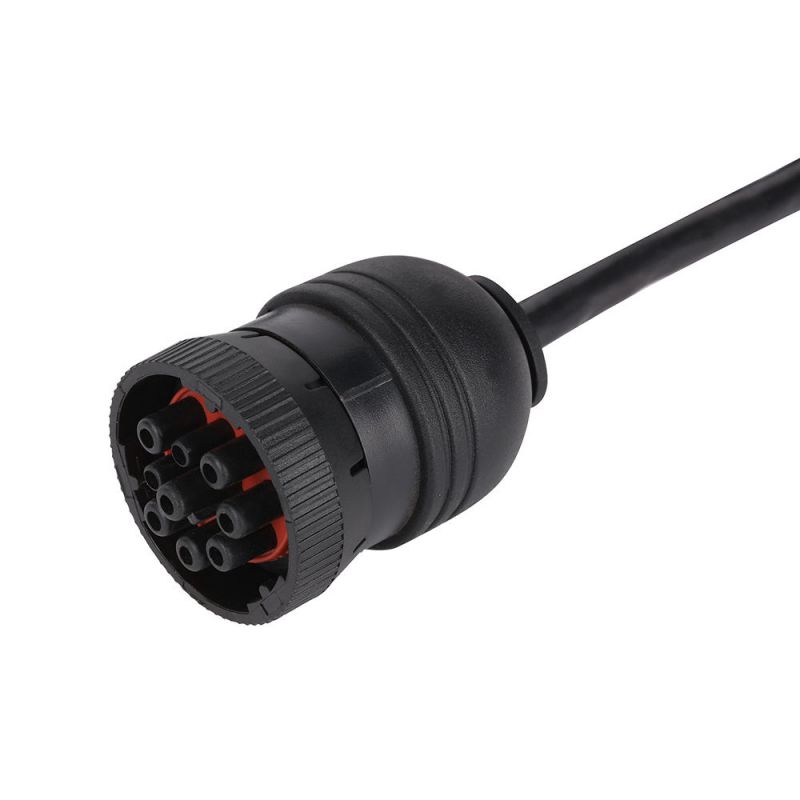

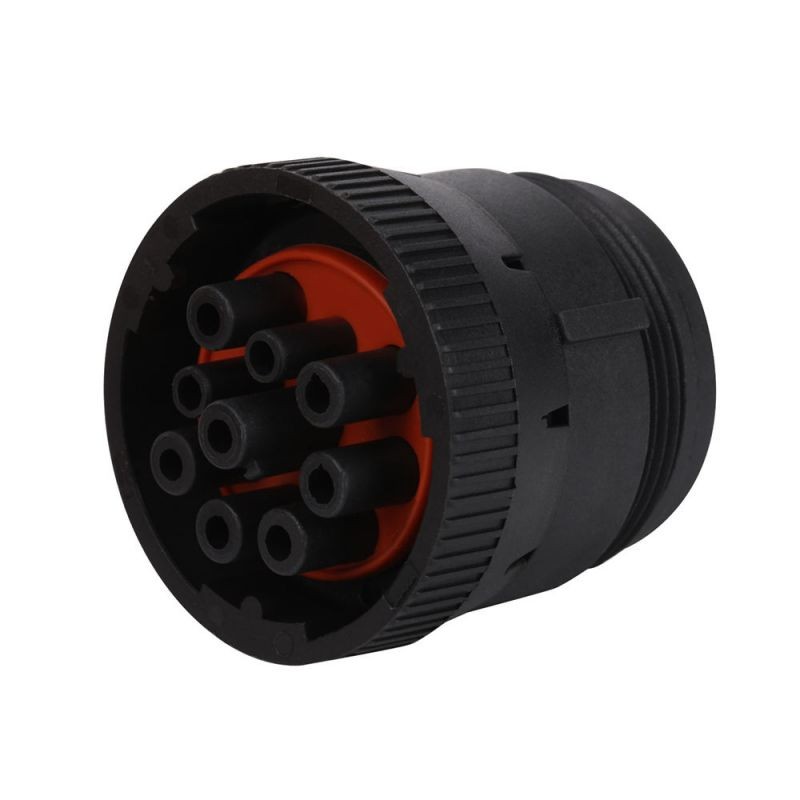

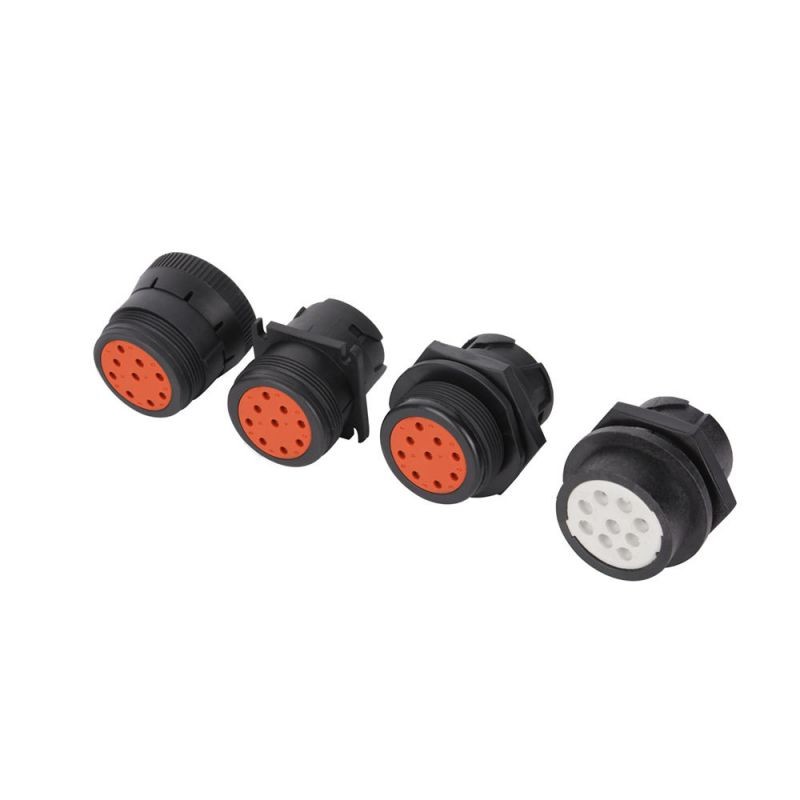

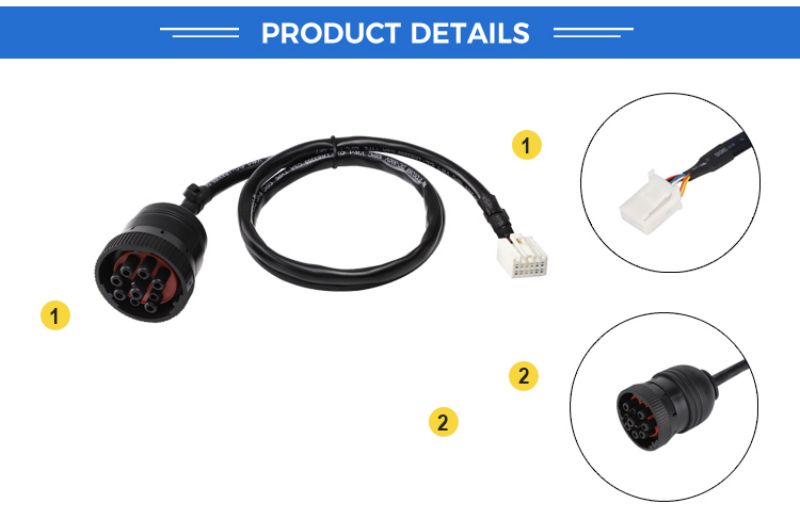

Product Name: | High qualityJ1939 9Pin Male To 12Pin Housing plug Connector obd2 obdii eld cable |
Compatibility: | used with any vehicle, SAE J1939 compliant |
Application: | aftermarket automotive industries |
PIN outl pin assignment: | customized |
UL Flammability Rating : | UL 94-HB |
Cable Length: | customized |
Cable jacket: | PE, PP,SR-PVC,PC.. |
Product Category: | molded cable, over molded cable, molding cable |
Cable ExitAngle : | Straight, angled, spliter, enclosure or customized |
Cable certification: | UL2517, UL2464, UL1007,UL1015 |
Cable cross-section: | 26AWG, 24WG, 20AWG, 18AWG etc.. |
Core color: | Black, White, Blue, Green Or Customized |
Core Material: | Polybutylene Terephthalate (PBT) |
Contact Type: | Solder or crimp |
